Rear wheels

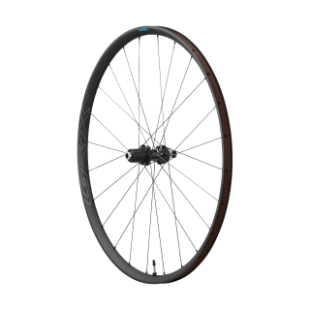

Shimano Shimano GRX WH-RX570 Rear Wheel
Rear · ISO 622 · 12×142
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Catalog trust
Evidence and freshness
Technical-source dates and retailer offer checks are separate. A retailer check does not validate compatibility.
Report a correction- Technical review
- Aug 6, 2026
- Compatibility review
- Reviewed Aug 6, 2026
Approved technical sources
- Shimano 2026 GRX component ordering catalogManufacturerSource checked Aug 6, 2026Evidence reviewed Aug 6, 2026
- Shimano current component specificationsManufacturerSource checked Aug 6, 2026Evidence reviewed Aug 6, 2026
Technical data
Specifications
- Wheel diameter
- ISO 622 (700c / 29″)
- Axle
- 12x142
- Supported axles
- 12x142
- Hub spacing
- 142 mm
- Axle retention
- Thru Axle
- Freehub driver
- Shimano HG L
- Compatible freehub drivers
- Shimano HG L
- Wheel brake interface
- Disc
- Rim / tire interface
- Hooked Clincher
- Rotor mount
- Center Lock
- Rim internal width
- 21.6 mm
- Minimum tire width
- 32 mm
- Maximum recommended tire width
- 42 mm
