Cranksets

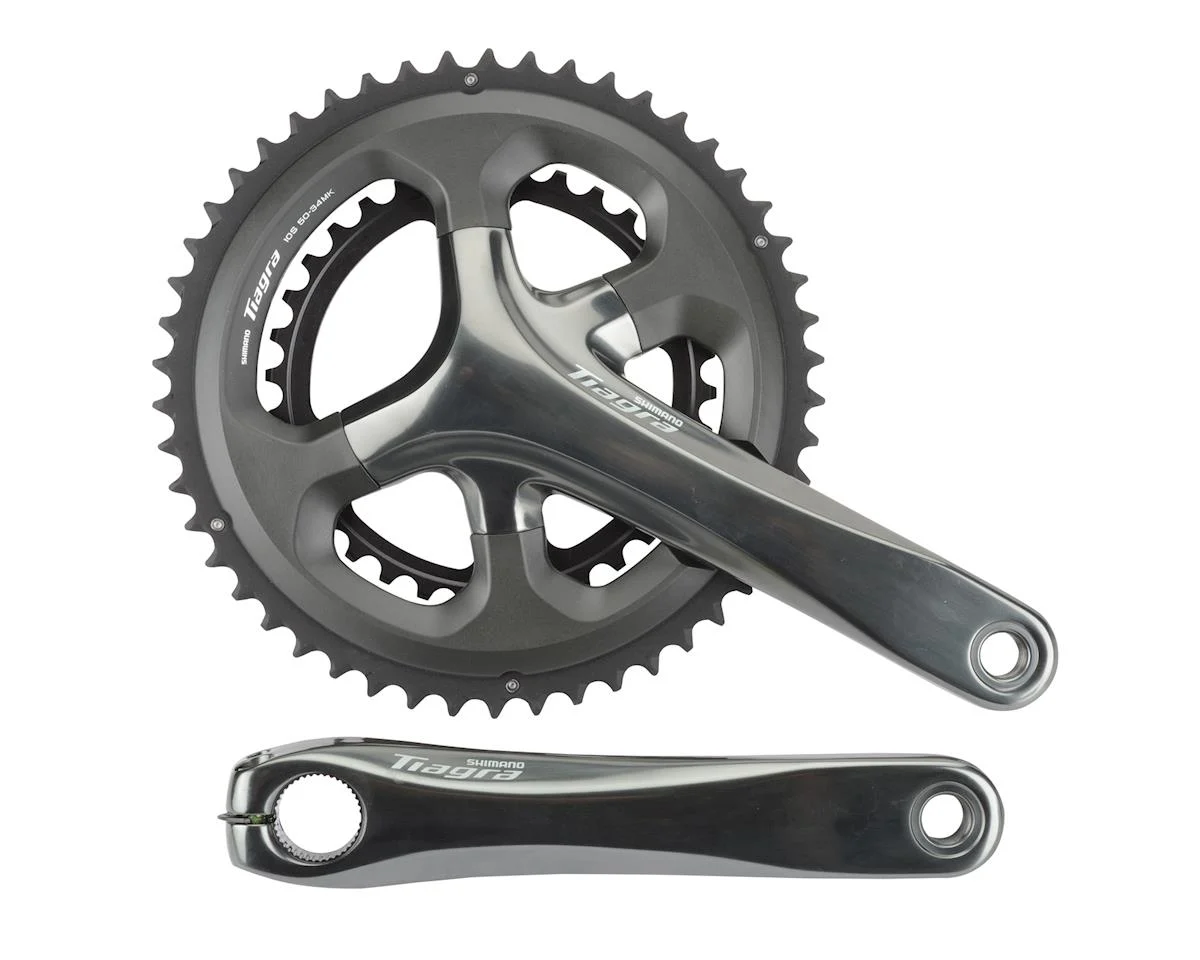

Shimano Shimano Tiagra FC-4700 Crankset
50-34T · 165 mm
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Catalog trust
Evidence and freshness
Technical-source dates and retailer offer checks are separate. A retailer check does not validate compatibility.
Report a correction- Technical review
- Jul 28, 2026
- Compatibility review
- Reviewed Jul 28, 2026
Approved technical sources
- Shimano front drivetrain compatibility C-455ManufacturerSource checked Jul 28, 2026Evidence reviewed Jul 28, 2026
- Shimano package-code and label referenceManufacturerSource checked Jul 28, 2026Evidence reviewed Jul 28, 2026
- Shimano road crankset specificationManufacturerSource checked Jul 28, 2026Evidence reviewed Jul 28, 2026
Technical data
Specifications
- Speeds
- 10-speed
- Supported speeds
- 10-speed
- Crank spindle
- 24mm
- Drivetrain family
- Shimano Tiagra 4700 mechanical 10-speed
- Compatible chain families
- Shimano HG-X 10-speed
- Front drivetrain groups
- Shimano C455 Tiagra 2x10
- Front chainrings
- 2x
- Chainring combination
- 50T, 34T
- Chainline
- 43.5 mm
- Crank arm length
- 165 mm
