Rear wheels

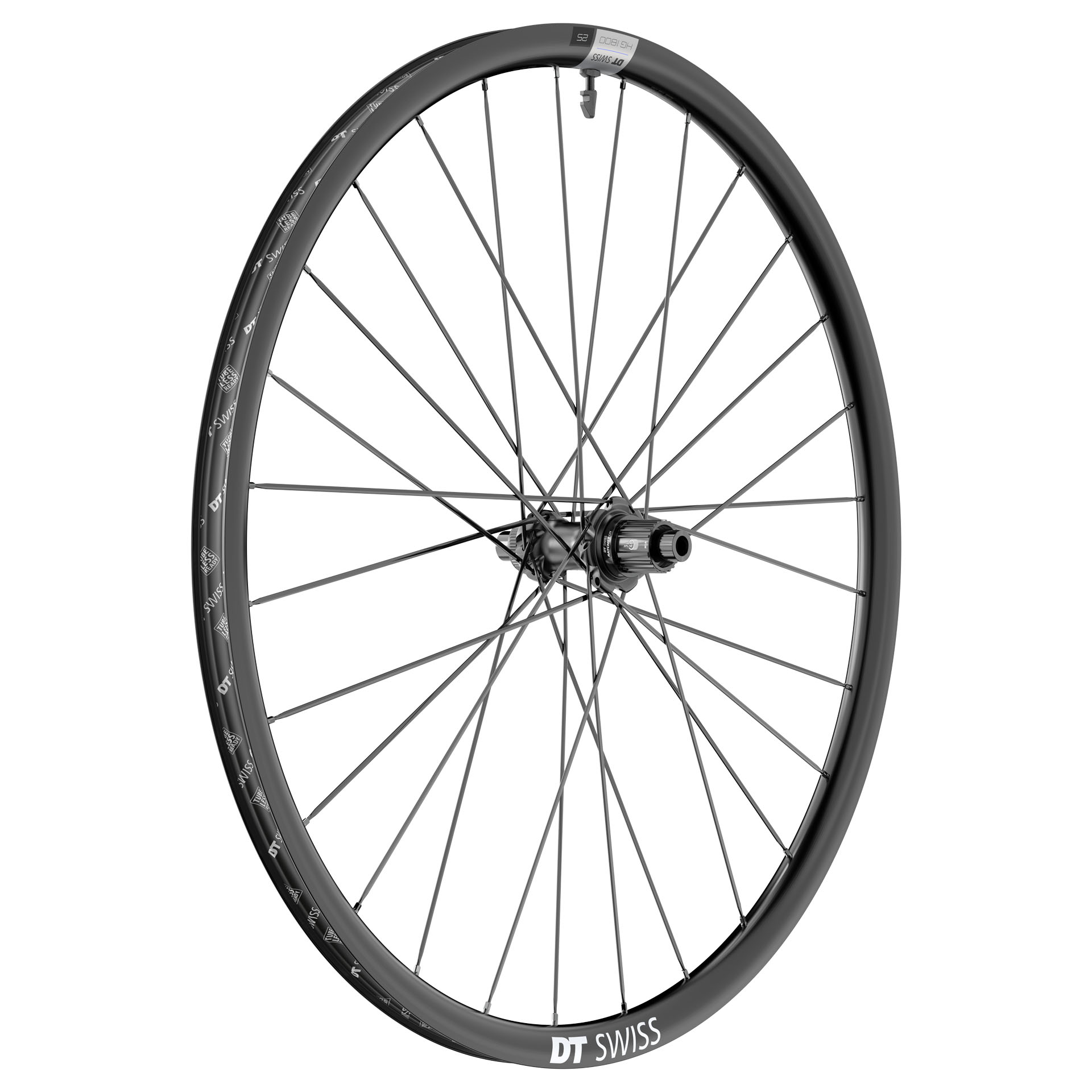

DT Swiss HG 1800 SPLINE®
HG 1800 SPLINE db 25 12/142 mm Shimano
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Technical data
Specifications
- Weight
- 1092 g
- Wheel diameter
- ISO 622 (700c / 29″)
- Axle
- 12x142
- Hub spacing
- 142 mm
- Axle retention
- Thru Axle
- Freehub driver
- Micro Spline
- Wheel brake interface
- Disc
- Rim / tire interface
- Hooked Clincher
- Rotor mount
- Center Lock
- Rim height
- 25 mm
- Rim internal width
- 24 mm
- Rim external width
- 28 mm
- Maximum system weight
- 140 kg
- Material
- Aluminum
