Rear wheels

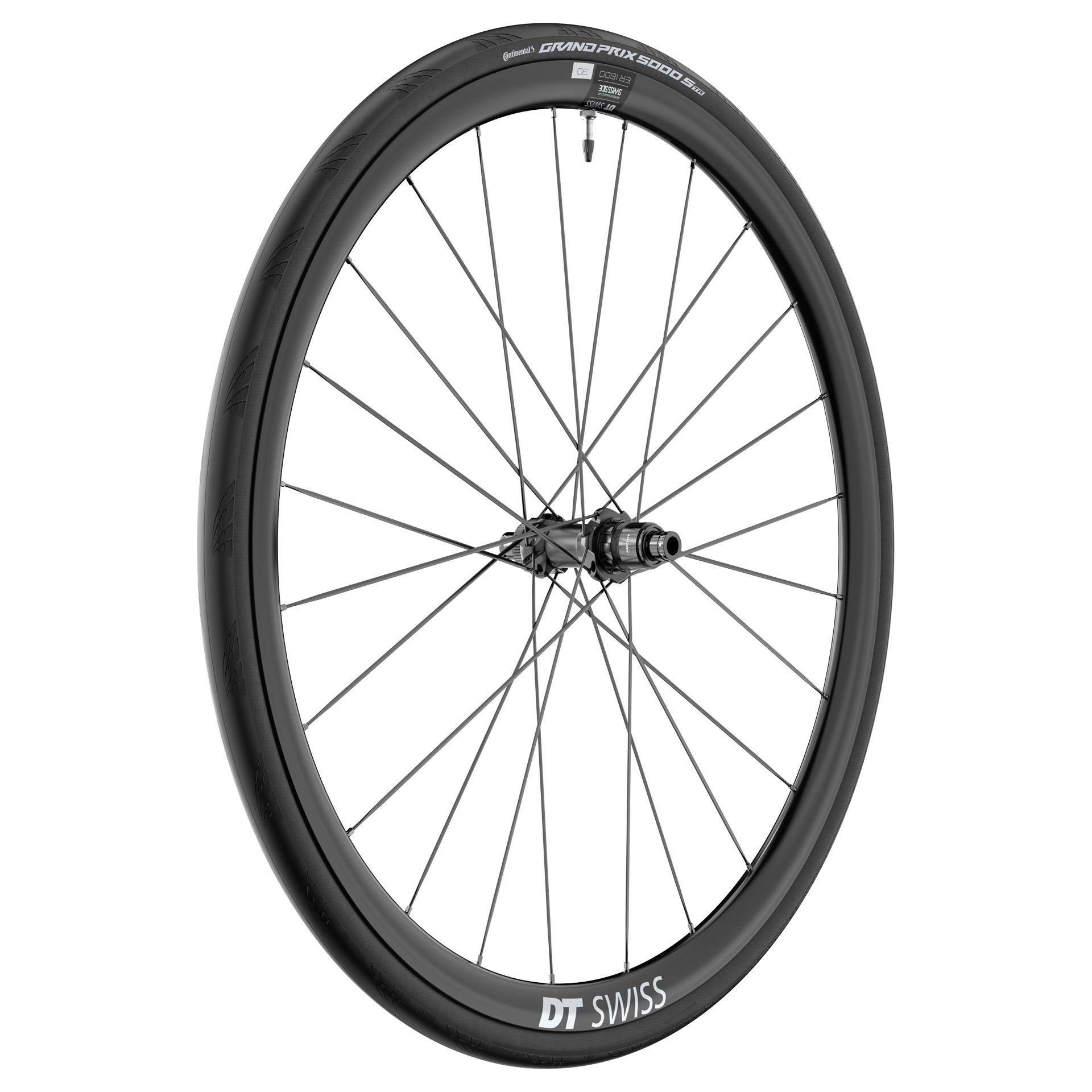

DT Swiss ER 1600 SPLINE®
ER 1600 SPLINE db 30 12/142 mm Sram XDR WTS
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Technical data
Specifications
- Weight
- 1375 g
- Wheel diameter
- ISO 622 (700c / 29″)
- Axle
- 12x142
- Hub spacing
- 142 mm
- Axle retention
- Thru Axle
- Freehub driver
- XDR
- Wheel brake interface
- Disc
- Rim / tire interface
- Hooked Clincher
- Rotor mount
- Center Lock
- Rim height
- 30 mm
- Rim internal width
- 22 mm
- Rim external width
- 26 mm
- Maximum system weight
- 130 kg
- Material
- Aluminum
Catalog trust
Evidence and freshness
Technical-source dates and retailer offer checks are separate. A retailer check does not validate compatibility.
Report a correction- Technical review
- Sep 4, 2026
- Compatibility review
- Reviewed Sep 4, 2026
Approved technical sources
- DT Swiss official current-index lifecycle for WER1600NID1SA27113
- dtswiss.com/en/wheels/wheels-roadManufacturerSource checked Aug 7, 2026Evidence reviewed Aug 7, 2026
- DT Swiss official exact material number WER1600NID1SA27113
- dtswiss.com/en/wheels/wheels-road/endurance/er-1600-splineManufacturerSource checked Aug 7, 2026Evidence reviewed Aug 7, 2026
