Rear wheels

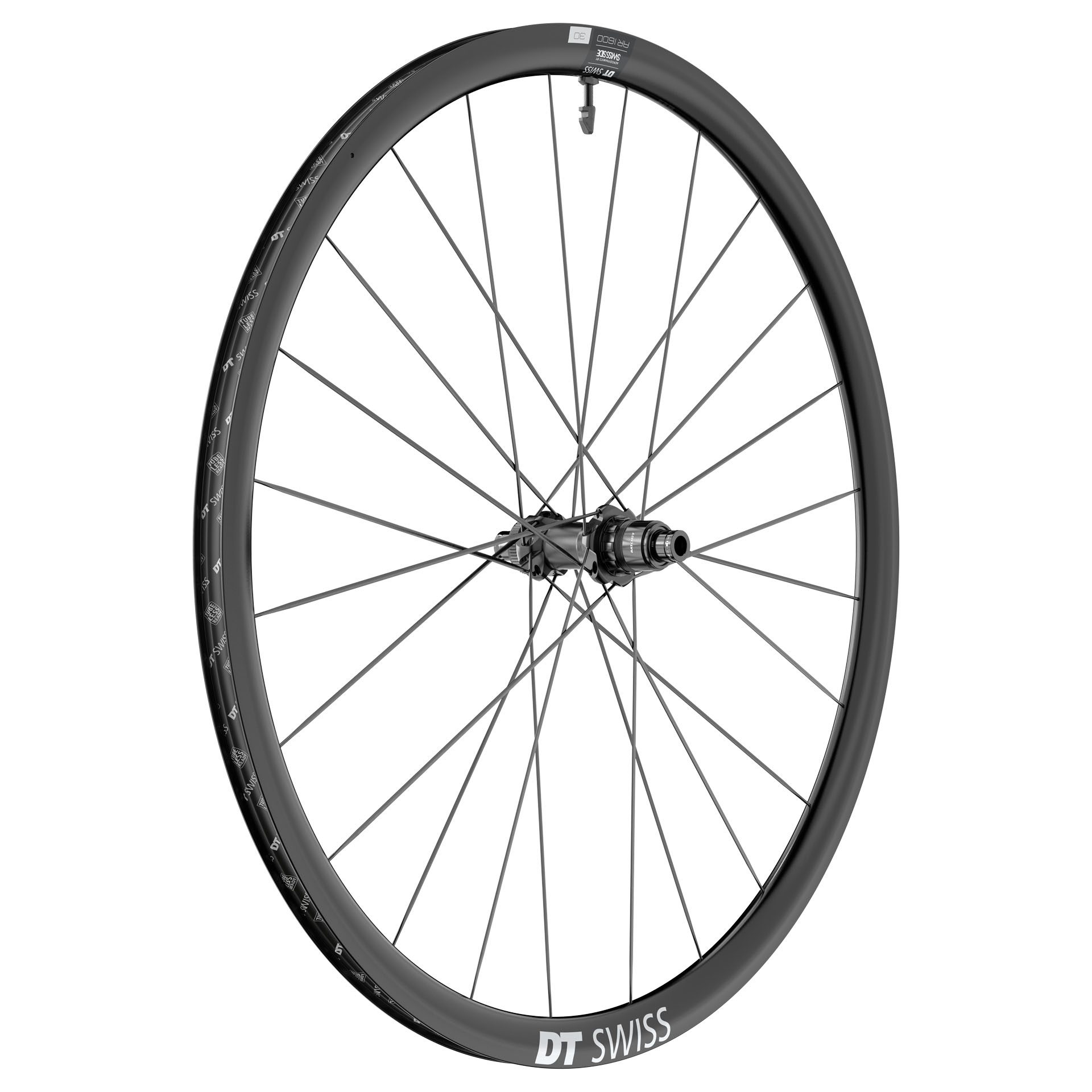

DT Swiss AR 1600 SPLINE®
AR 1600 SPLINE db 30 12/142 mm Sram XDR
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Technical data
Specifications
- Weight
- 915 g
- Wheel diameter
- ISO 622 (700c / 29″)
- Axle
- 12x142
- Hub spacing
- 142 mm
- Axle retention
- Thru Axle
- Freehub driver
- XDR
- Wheel brake interface
- Disc
- Rim / tire interface
- Hooked Clincher
- Rotor mount
- Center Lock
- Rim height
- 30 mm
- Rim internal width
- 20 mm
- Rim external width
- 24 mm
- Maximum system weight
- 110 kg
- Material
- Aluminum
