Front derailleurs

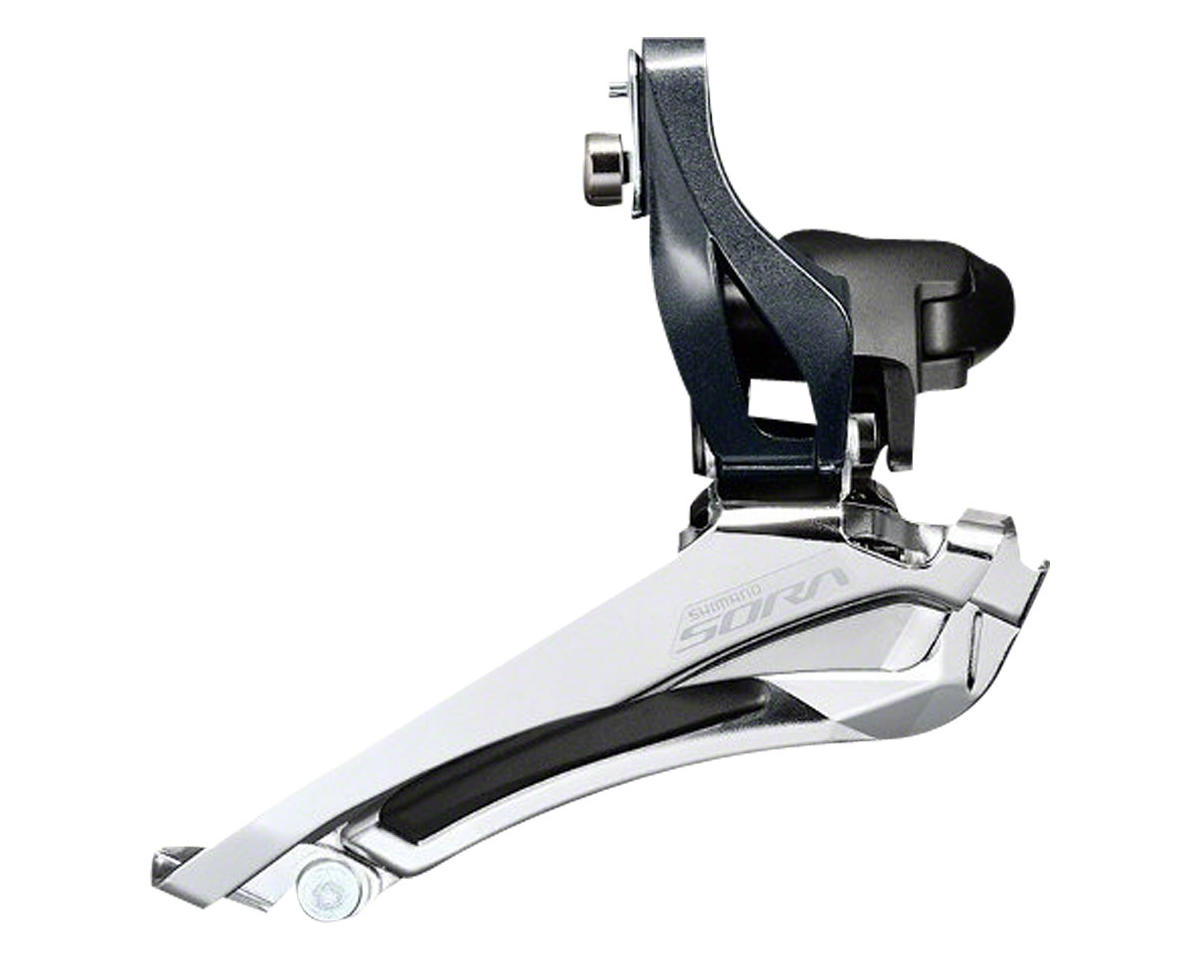

Shimano Sora FD-R3000 Front Derailleur
34.9 mm clamp · 31.8 / 28.6 mm adapters
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Technical data
Specifications
- Speeds
- 9-speed
- Supported speeds
- 9-speed
- Compatible drivetrain families
- Shimano Sora R3000 mechanical 9-speed
- Compatible chain families
- Shimano HG 9-speed
- Front drivetrain groups
- Shimano C455 Sora 2x9
- Front speeds
- 2x
- Shift actuation
- Mechanical
- Front derailleur mount
- Clamp Band
- Front derailleur clamp diameter
- 34.9 mm
- Supported front derailleur clamp diameters
- 34.9 mm, 31.8 mm, 28.6 mm
- Minimum outer chainring
- 46T
- Maximum outer chainring
- 52T
- Total capacity
- 16T
- Minimum chainstay angle
- 61°
- Maximum chainstay angle
- 66°
- Chainline
- 43.5 mm
Catalog trust
Evidence and freshness
Technical-source dates and retailer offer checks are separate. A retailer check does not validate compatibility.
Report a correction- Technical review
- Jul 28, 2026
- Compatibility review
- Reviewed Jul 28, 2026
Approved technical sources
- Shimano front drivetrain compatibility C-455
- productinfo.shimano.com/en/compatibility/C-455ManufacturerSource checked Jul 28, 2026Evidence reviewed Jul 28, 2026
- Shimano package-code and label reference
- si.shimano.com/pdfs/compliance/pmi/Packaging%20Labelling%20Information_Italy_BC_20231016.pdfManufacturerSource checked Jul 28, 2026Evidence reviewed Jul 28, 2026
- Shimano road front derailleur specification
- productinfo.shimano.com/en/spec/road-front-derailleurManufacturerSource checked Jul 28, 2026Evidence reviewed Jul 28, 2026
