Pivot Vault V6 Frameset

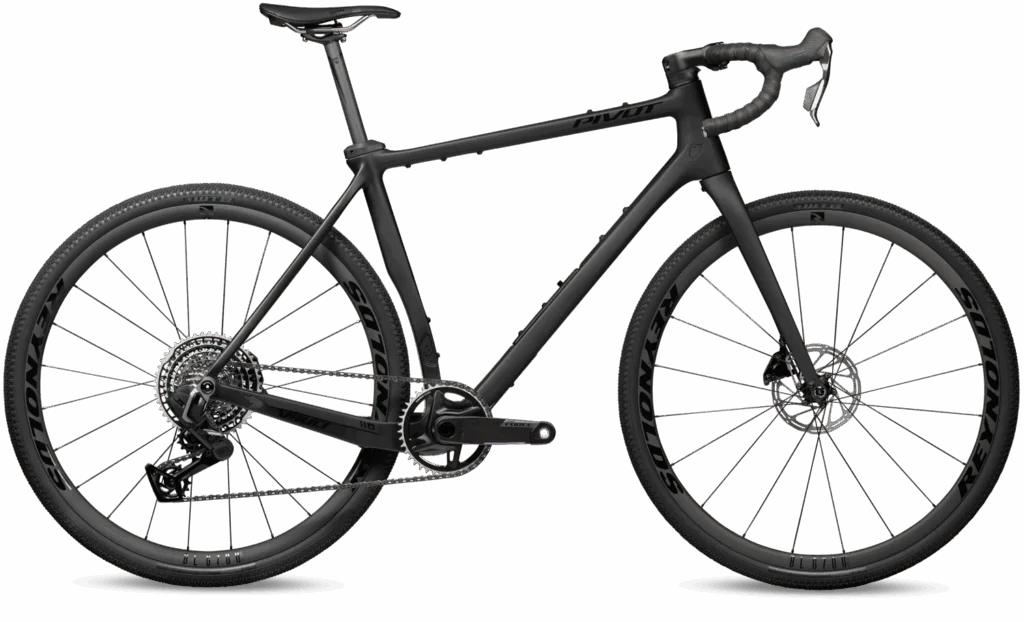

Pivot Vault V6 Frameset Black, L
Package contents
Included Components
- Pivot pivot-vault Included Fork · Package Fork for Pivot Vault V6 Frameset Black, L
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Catalog trust
Evidence and freshness
Technical-source dates and retailer offer checks are separate. A retailer check does not validate compatibility.
Report a correction- Technical review
- Sep 6, 2026
- Compatibility review
- Reviewed Sep 6, 2026
Approved technical sources
- Pivot pivot-vault exact retailer identity and official family factsManufacturerSource checked Sep 6, 2026Evidence reviewed Sep 6, 2026
Technical data
Specifications
- Supported wheel diameters
- ISO 622 (700c / 29″)
- Stock rear axle
- 12x142
- Stock front axle
- 12x100
- Supported build types
- Geared
- Bottom bracket shell
- Bb386evo
- Maximum tire width
- 50 mm
- Seatpost diameter
- 27.2 mm
- Rear derailleur mounting
- UDH hanger + Full Mount
- Brake mount
- Flat Mount
- Supported fork steerer types
- Tapered
- Supported steerer upper diameters
- 28.6 mm
- Supported steerer lower diameters
- 38.1 mm
- Minimum fork axle-to-crown
- 415 mm
- Maximum fork axle-to-crown
- 415 mm
- Minimum fork offset
- 52 mm
- Maximum fork offset
- 52 mm
