Framesets

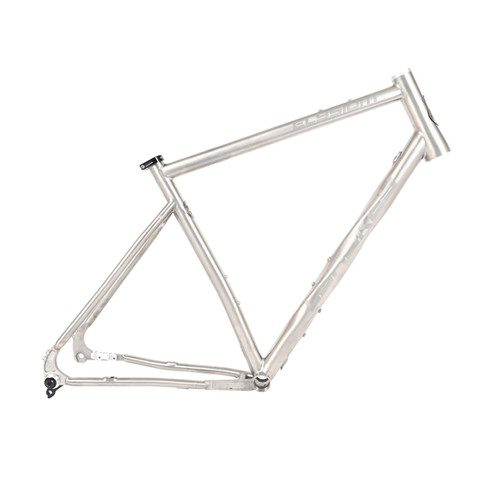

Lynskey Elysium Frame
XS
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Catalog trust
Evidence and freshness
Technical-source dates and retailer offer checks are separate. A retailer check does not validate compatibility.
Report a correction- Technical review
- Aug 27, 2026
- Compatibility review
- Reviewed Aug 27, 2026
Approved technical sources
- Lynskey Elysium Frame official XS geometryManufacturerSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
- Lynskey Elysium official frame detailManufacturerSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
- Lynskey gravel and road rear thru-axle specificationManufacturerSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
- Catalog-owner-approved Lynskey Elysium seatpost diameterOther sourceSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
Technical data
Specifications
- Supported wheel diameters
- ISO 622 (700c / 29″)
- Stock rear axle
- 12x142
- Supported build types
- Geared
- Bottom bracket shell
- BSA-68
- BB shell width
- 68 mm
- Maximum tire width
- 50 mm
- Seatpost diameter
- 27.2 mm
- Rear derailleur mounting
- UDH hanger + Full Mount
- Brake mount
- Flat Mount
- Seat tube length
- 450 mm
- Effective top tube
- 530 mm
- Head tube length
- 110 mm
- Bottom bracket drop
- 80 mm
- Head tube angle
- 70°
- Seat tube angle
- 74.5°
- Wheelbase
- 1007 mm
- Chainstay length
- 430 mm
- Stack
- 539 mm
- Reach
- 369 mm
- Fork offset / rake
- 45 mm
- Recommended rider height, minimum
- 152 cm
- Recommended rider height, maximum
- 159 cm
