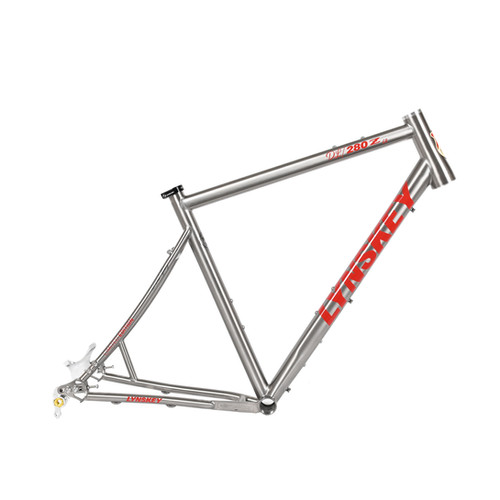

Lynskey DL 280z GR
SM
Compatibility: reviewed
Known specifications can be used by the compatibility engine.
Retailer offers
Where to Buy
Compare verified retailer affiliate links or search Amazon. We may earn a commission from qualifying purchases. Please confirm the exact variant before purchasing.
Catalog trust
Evidence and freshness
Technical-source dates and retailer offer checks are separate. A retailer check does not validate compatibility.
Report a correction- Technical review
- Aug 27, 2026
- Compatibility review
- Reviewed Aug 27, 2026
Approved technical sources
- Lynskey DL 280z GR complete-build frame specificationsManufacturerSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
- Lynskey DL 280z GR drivetrain and wheel compatibilityManufacturerSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
- Lynskey DL 280z GR official frame detailManufacturerSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
- Lynskey gravel and road rear thru-axle specificationManufacturerSource checked Aug 26, 2026Evidence reviewed Aug 26, 2026
Technical data
Specifications
- Supported wheel diameters
- ISO 584 (650b / 27.5″), ISO 622 (700c / 29″)
- Stock rear axle
- 12x142
- Supported build types
- Geared, Single Speed
- Bottom bracket shell
- BSA-68
- BB shell width
- 68 mm
- Maximum tire width
- 50 mm
- Seatpost diameter
- 27.2 mm
- Rear derailleur mounting
- UDH hanger + Full Mount
- Brake mount
- Flat Mount
- Seat tube length
- 470 mm
- Effective top tube
- 536 mm
- Head tube length
- 126 mm
- Bottom bracket drop
- 80 mm
- Head tube angle
- 70°
- Seat tube angle
- 74°
- Wheelbase
- 1023 mm
- Chainstay length
- 435 mm
- Stack
- 553 mm
- Reach
- 375 mm
- Recommended rider height, minimum
- 160 cm
- Recommended rider height, maximum
- 167 cm
