REVIEWED COMPLETE BIKE

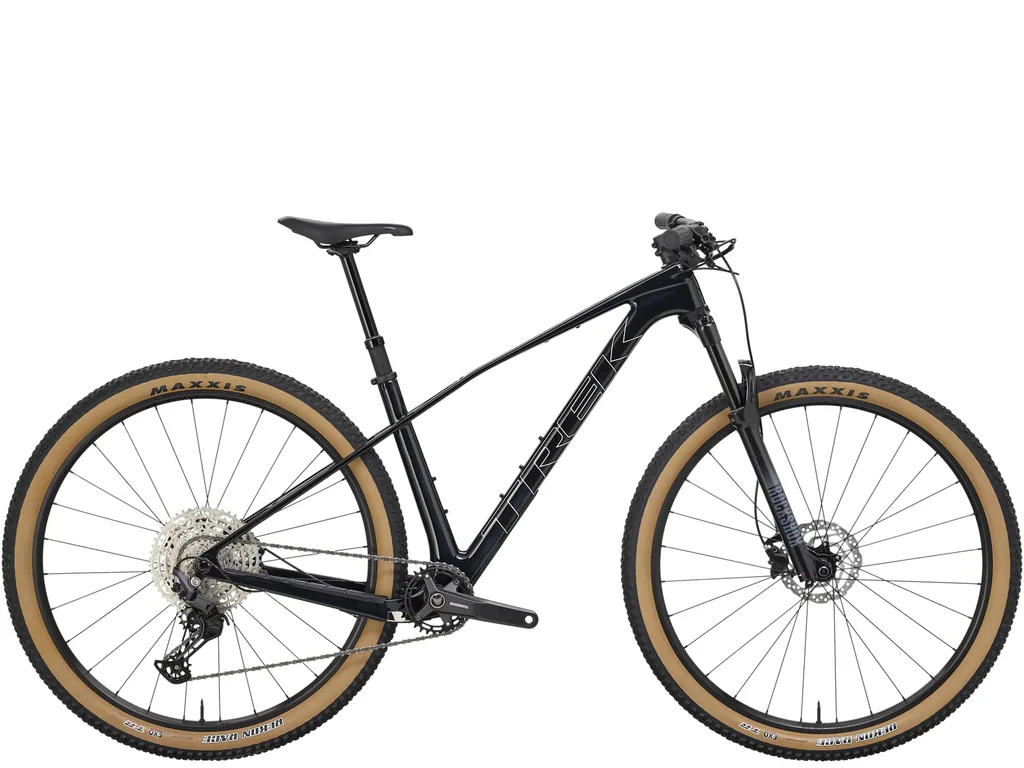

Trek Procaliber 9.5 Gen 3
Explore the reviewed stock build and choose the size and configuration that matches your bike.
- Selected Size
REVIEWED STOCK BUILD
Stock Specifications
These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.
Chassis
Wheels & Tires
Drivetrain
- Bottom Bracket
- Shimano BB-MT500-PA Press-Fit; 89.5/92 mm; 24 mm
- Rear Derailleur
- Shimano Deore RD-M6200-SGS Mechanical 12-speed; 1x; 10-51T
- Controls
- Stock specification unavailable
Brakes
Cockpit
REVIEWED MEASUREMENTS
Technical Data
Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.
Fit & Weight
- Recommended Rider Height
- 5′ 1″–5′ 5″ (155–165 cm)
- Advertised Assembled Weight
- 28.1 lb (12.7 kg)Manufacturer size M assembled weight, with TLR sealant and no tubes; projected within this exact build for other sizes
Geometry
Exact-size manufacturer geometry. Fork offset is Unknown: factory fork is 42 mm; exact geometry says 43 mm. Assembled weight is measured on M with TLR sealant and no tubes, and projected within this exact build for other sizes.
| Stack | 614 mm |
|---|---|
| Reach | 405 mm |
| Standover | 747 mm |
| Seat Tube | 390 mm |
| Effective Top Tube | 577 mm |
| Head Tube | 90 mm |
| Chainstay | 430 mm |
| Wheelbase | 1110 mm |
| Bottom Bracket Drop | 64 mm |
| Fork Offset | Unavailable |
| Head Angle | 67° |
| Seat Angle | 71° |
Sources
- Procaliber 76161 exact US buildmanufacturer
- Procaliber 76161 exact US buildmanufacturer
