REVIEWED COMPLETE BIKE

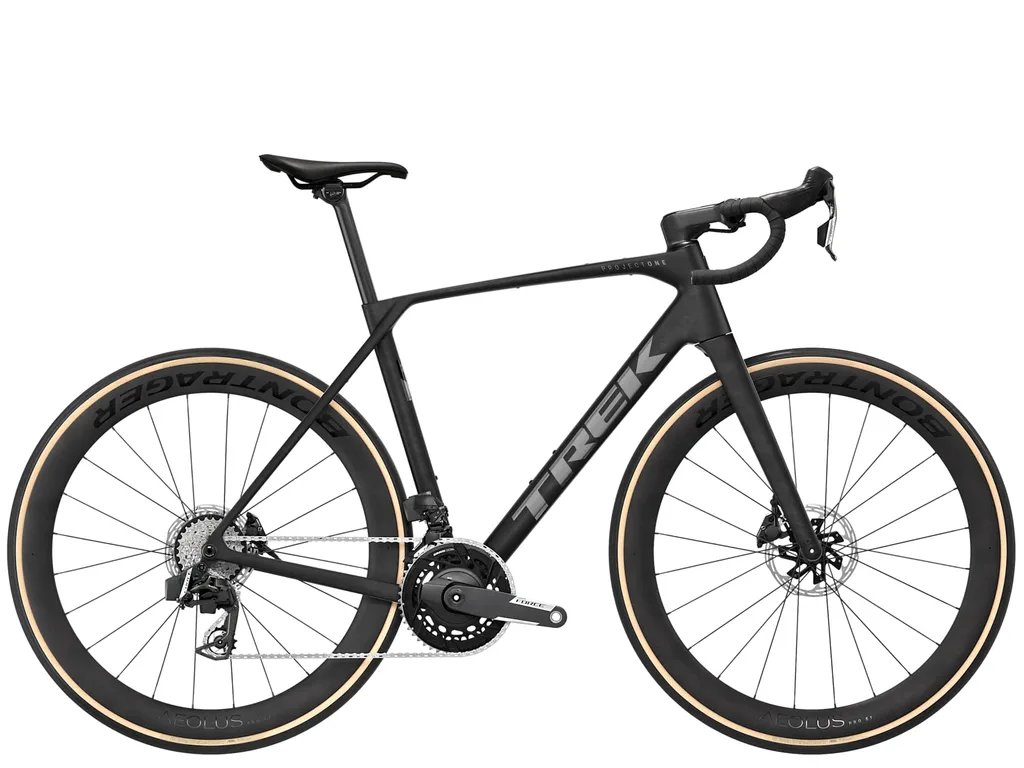

Trek Domane SLR 7 AXS Gen 5
Explore the reviewed stock build and choose the size and configuration that matches your bike.
- Selected Size
REVIEWED STOCK BUILD
Stock Specifications
These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.
Chassis
Wheels & Tires
Drivetrain
Brakes
Cockpit
REVIEWED MEASUREMENTS
Technical Data
Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.
Fit & Weight
- Recommended Rider Height
- 4′ 8″–5′ 2″ (143–158 cm)
- Advertised Assembled Weight
- 17.0 lb (7.7 kg)Measured on size ML. Manufacturer ML reference: with tubes; projected within exact same79927 build. Other physical sizes not individually weighed
Geometry
Exact-size US79927 geometry and model-linked SL/SLR Gen5 normative manual. ML assembled weight projected only within this exact build. Fork53mm/380mm XS/S/M;48mm/390mm ML/L/XL. OE versus retail conflicts retained as installed references with scoped Unknowns.
| Stack | 524 mm |
|---|---|
| Reach | 368 mm |
| Standover | 721 mm |
| Seat Tube | 444 mm |
| Effective Top Tube | 520 mm |
| Head Tube | 106 mm |
| Chainstay | 420 mm |
| Wheelbase | 987 mm |
| Bottom Bracket Drop | 80 mm |
| Fork Offset | 53 mm |
| Head Angle | 71.3° |
| Seat Angle | 73.5° |
