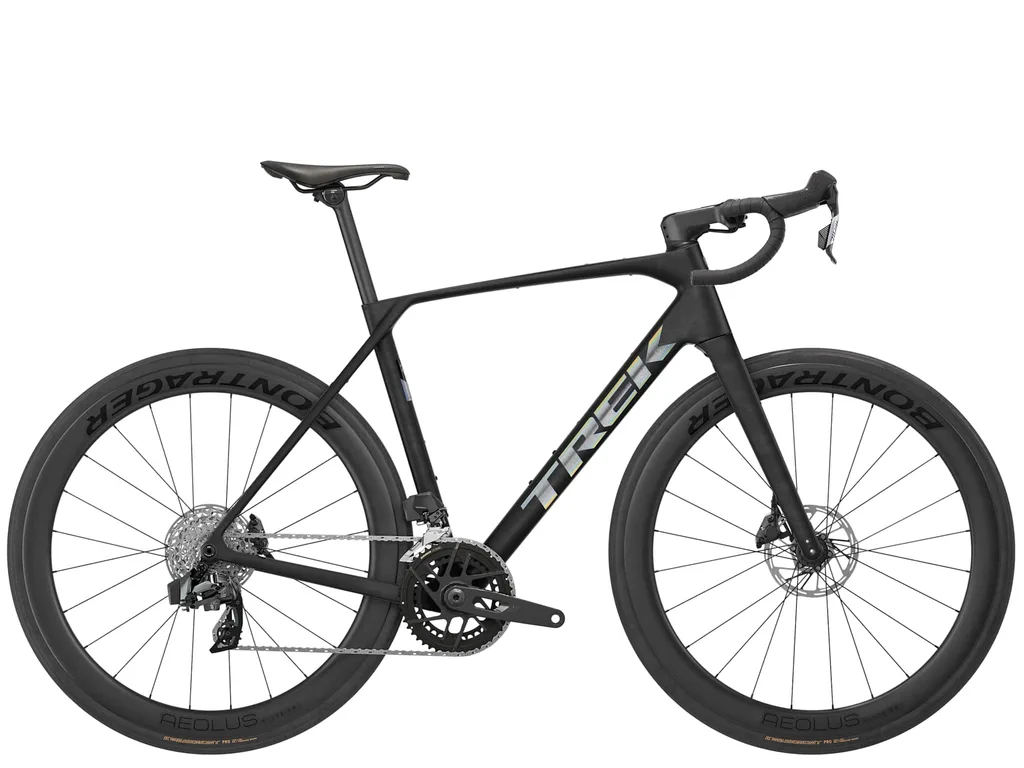

Trek Domane SL 6 AXS Gen 5 · BikePartPicker

REVIEWED STOCK BUILD

Stock Specifications

These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.

Chassis

Frameset: Trek Domane SL Gen 5 500 OCLV Stock Frame XS
Fork: Trek Domane SL Gen 5 Stock Carbon Fork 53 mm Offset / 380 mm Axle to Crown

Wheels & Tires

Front Wheel: Bontrager Aeolus Elite 50 Stock Front Wheel 700c / 12x100
Rear Wheel: Bontrager Aeolus Elite 50 Stock Rear Wheel 700c / 12x142 / XDR
Front Tire: Bontrager Kwaremont Pro TLR Road Tire 700C x 35mm
Rear Tire: Bontrager Kwaremont Pro TLR Road Tire 700C x 35mm

Drivetrain

Bottom Bracket: SRAM DUB T47-85.5 Road Stock Bottom Bracket Exact Domane 79844 installed unit
Cassette: SRAM XG-1250 Cassette 10-36T / 12-speed
Front Derailleur: SRAM Rival AXS Front Derailleur FD RIVAL AXS E1 BRAZE
Rear Derailleur: SRAM Rival E1 Installed Rear Derailleur Domane79844 installed12-speed/36T
Chain: SRAM Rival E1 Installed Chain Exact Domane 79844 installed chain; trimmed length Unknown
Left Controls: SRAM Rival AXS Left Shift-Brake Control Factory Included Control
Right Controls: SRAM Rival AXS Right Shift-Brake Control Factory Included Control
Crankset: SRAM Rival E1 Installed Crankset Domane 79844 installed 48/35T DUB 160 mm

Brakes

Front Brake: SRAM Rival AXS E1 Brake Caliper One standalone front/rear caliper
Rear Brake: SRAM Rival AXS E1 Brake Caliper One standalone front/rear caliper
Front Rotor: SRAM Paceline Rotor 160 mm · Center Lock
Rear Rotor: SRAM Paceline Rotor 160 mm · Center Lock

Cockpit

Seatpost: Bontrager RSL 27.2 Seatpost 27.2 mm / 330 mm / 5 mm offset
Saddle: Trek Verse Short Comp Bike Saddle 250mm x 145mm
Handlebar: Bontrager Comp Riser Road Handlebar 360mm/400mm
Stem: Trek RCS Pro Blendr Stem -7 deg. x 80mm

REVIEWED MEASUREMENTS

Technical Data

Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.

Fit & Weight

Recommended Rider Height: 4′ 8″–5′ 2″ (143–158 cm)
Advertised Assembled Weight: 19.0 lb (8.6 kg)Measured on size ML. Manufacturer measured ML with TLR sealant and no tubes; same-build projection for other sizes, not an exact-size component weight

Geometry

Exact-size manufacturer geometry. ML measured assembled weight is projected within this exact build; unsupported component dimensions remain Unknown.

Stack	524 mm
Reach	368 mm
Standover	721 mm
Seat Tube	444 mm
Effective Top Tube	520 mm
Head Tube	106 mm
Chainstay	420 mm
Wheelbase	987 mm
Bottom Bracket Drop	80 mm
Fork Offset	53 mm
Head Angle	71.3°
Seat Angle	73.5°
