REVIEWED COMPLETE BIKE

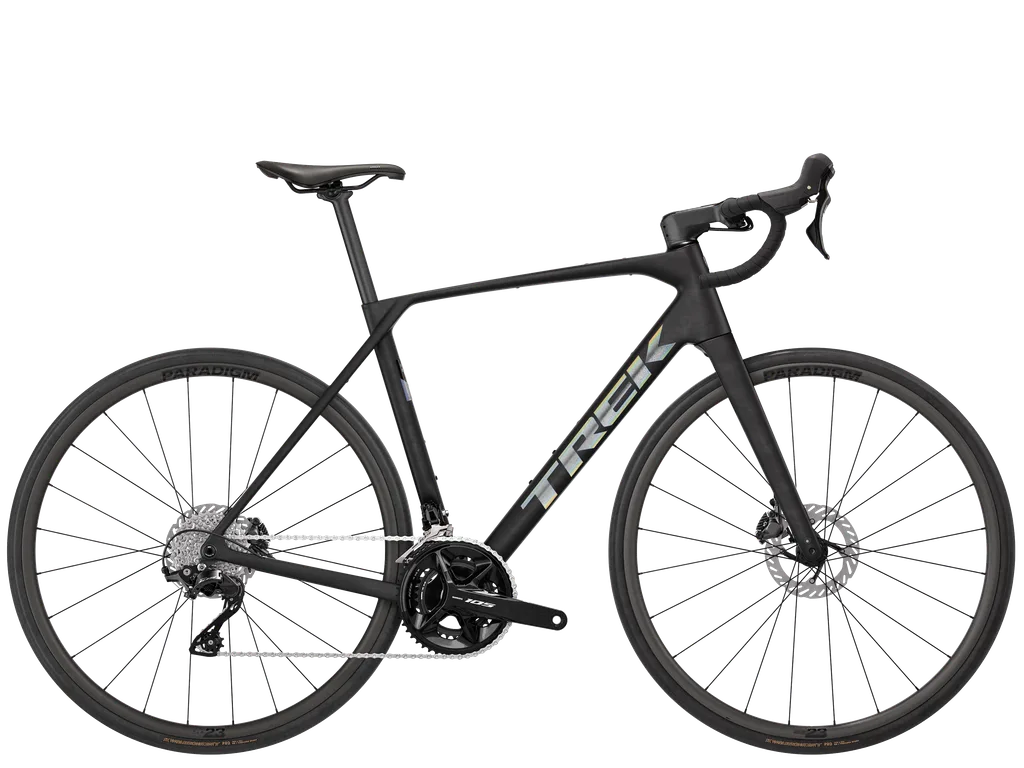

Trek Domane SL 5 Gen 5
Explore the reviewed stock build and choose the size and configuration that matches your bike.
- Selected Size
REVIEWED STOCK BUILD
Stock Specifications
These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.
Chassis
Wheels & Tires
Drivetrain
- Front Derailleur
- Shimano 105 FD-R7100 Front Derailleur Braze-on
Brakes
- Front Brake
- Shimano Br-R7170 105 Disc Brake Hydraulic Disc Brake, Br-R7170, 105, Front, Flat Mount Front Caliper
- Rear Brake
- Shimano Br-R7170 105 Disc Brake Hydraulic Disc Brake, Br-R7170, 105, Rear, Flat Mount Rear Caliper
- Front Rotor
- Shimano CL700 Stock Rotor CL700 160 mm
- Rear Rotor
- Shimano CL700 Stock Rotor CL700 160 mm
Cockpit
REVIEWED MEASUREMENTS
Technical Data
Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.
Fit & Weight
- Recommended Rider Height
- 4′ 8″–5′ 2″ (143–158 cm)
- Advertised Assembled Weight
- 19.5 lb (8.8 kg)Measured on size ML. Manufacturer measured ML assembled weight with TLR sealant and no tubes; projected within this exact build for other sizes
Geometry
Exact-size manufacturer geometry; normative manual confirms 53 mm offset on XS/S/M and 48 mm on ML/L/XL. Assembled weight is measured on ML with TLR sealant and no tubes and projected within this exact build for other sizes.
| Stack | 524 mm |
|---|---|
| Reach | 368 mm |
| Standover | 721 mm |
| Seat Tube | 444 mm |
| Effective Top Tube | 520 mm |
| Head Tube | 106 mm |
| Chainstay | 420 mm |
| Wheelbase | 987 mm |
| Bottom Bracket Drop | 80 mm |
| Fork Offset | 53 mm |
| Head Angle | 71.3° |
| Seat Angle | 73.5° |
Sources
- Domane77555 exact current buildmanufacturer
- Domane77555 exact current buildmanufacturer
