REVIEWED COMPLETE BIKE

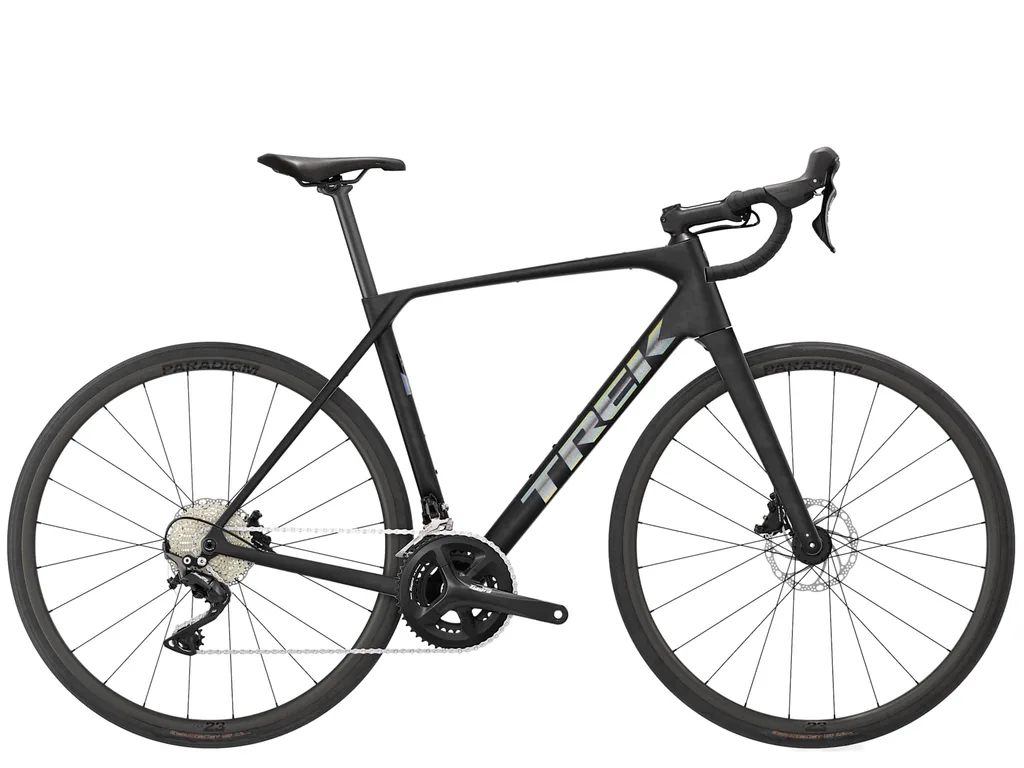

Trek Domane SL 4 Gen 5
Explore the reviewed stock build and choose the size and configuration that matches your bike.
- Selected Size
REVIEWED STOCK BUILD
Stock Specifications
These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.
Chassis
Wheels & Tires
Drivetrain
Brakes
- Front Brake
- Stock specification unavailable
- Rear Brake
- Stock specification unavailable
Cockpit
REVIEWED MEASUREMENTS
Technical Data
Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.
Fit & Weight
- Recommended Rider Height
- 4′ 8″–5′ 2″ (143–158 cm)
- Advertised Assembled Weight
- 20.1 lb (9.1 kg)Measured on size ML. Manufacturer reference measured on ML with TLR sealant and no tubes; projected only within this exact model/build. This is not a measurement of other sizes
Geometry
Exact-size manufacturer geometry and linked normative service manual support53mm fork offset XS/S/M and48mm ML/L/XL. Generic53mm service prose is not applied to larger sizes. Assembled weight measured on ML with TLR sealant and no tubes is projected within this exact build. Installed chain length, caliper identities and rotor thickness remain Unknown.
| Stack | 524 mm |
|---|---|
| Reach | 368 mm |
| Standover | 721 mm |
| Seat Tube | 444 mm |
| Effective Top Tube | 520 mm |
| Head Tube | 106 mm |
| Chainstay | 420 mm |
| Wheelbase | 987 mm |
| Bottom Bracket Drop | 80 mm |
| Fork Offset | 53 mm |
| Head Angle | 71.3° |
| Seat Angle | 73.5° |
Sources
- api.trekbikes.commanufacturer
- api.trekbikes.commanufacturer
