REVIEWED COMPLETE BIKE

Trek Domane AL 5 Gen 4

Explore the reviewed stock build and choose the size and configuration that matches your bike.

Selected Size

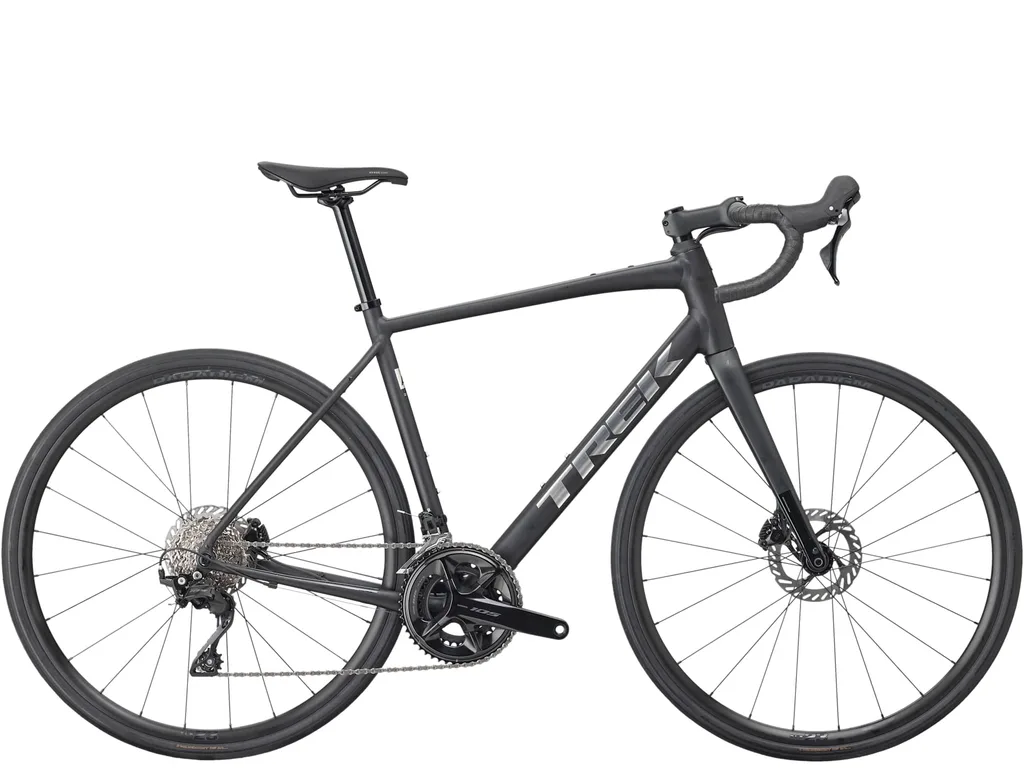

Trek Domane AL 5 Gen 4; official representative US build photo

REVIEWED STOCK BUILD

Stock Specifications

These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.

Chassis

Wheels & Tires

Drivetrain

Brakes

Cockpit

REVIEWED MEASUREMENTS

Technical Data

Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.

Fit & Weight

Recommended Rider Height
4′ 11″–5′ 0″ (150–153 cm)
Advertised Assembled Weight
21.6 lb (9.8 kg)Measured on size 56. Manufacturer published pre-production assembled-bike weight; exact measured size56. Other sizes do not inherit a measured per-size weight

Geometry

Exact manufacturer geometry for this size. Assembled weight is measured only on size56; other sizes show that model reference measurement. Stock bar drop121mm differs from retail122mm; installed references preserve the factory statement.

Stack510 mm
Reach360 mm
Standover657 mm
Seat Tube390 mm
Effective Top Tube507 mm
Head Tube95 mm
Chainstay420 mm
Wheelbase983 mm
Bottom Bracket Drop80 mm
Fork Offset53 mm
Head Angle70.3°
Seat Angle74.6°

Sources
