REVIEWED COMPLETE BIKE

Trek Domane AL 2 Gen 4

Explore the reviewed stock build and choose the size and configuration that matches your bike.

Selected Size

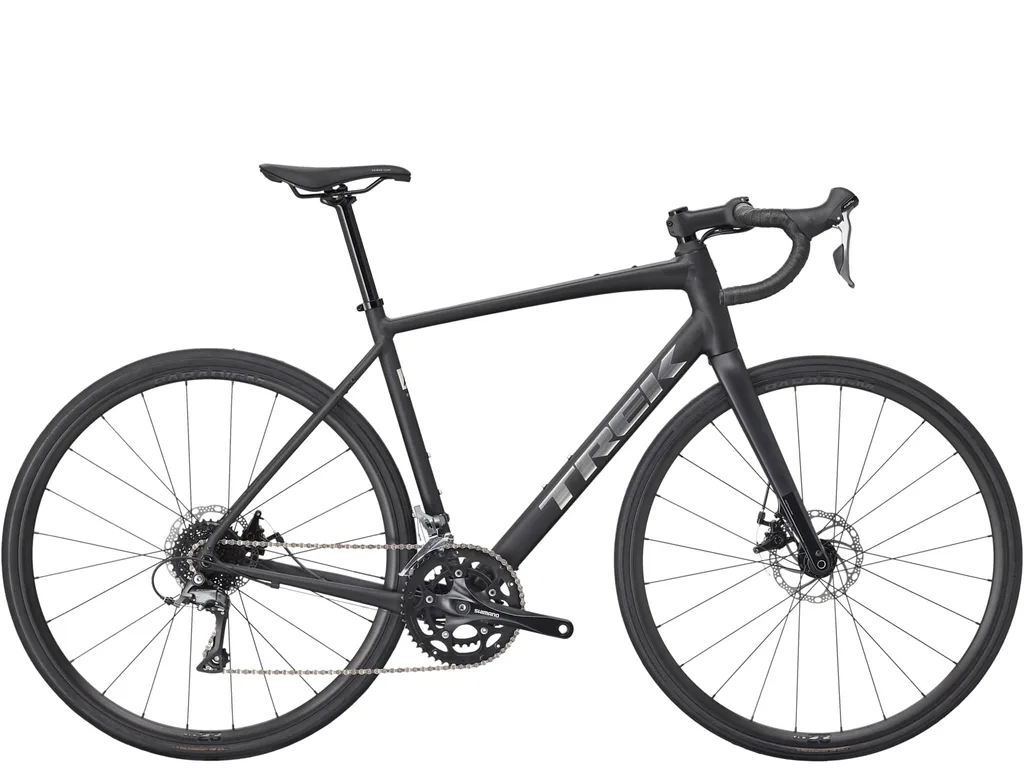

Trek Domane AL 2 Gen 4; official representative US full-bike photo

REVIEWED STOCK BUILD

Stock Specifications

These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.

Chassis

Wheels & Tires

Drivetrain

Brakes

Cockpit

REVIEWED MEASUREMENTS

Technical Data

Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.

Fit & Weight

Recommended Rider Height
Unavailable
Advertised Assembled Weight
22.8 lb (10.3 kg)Measured on size 56. Manufacturer assembled-bike reference weight measured in size56; not a measurement of other sizes

Geometry

Geometry values describe the exact same1451U0024 physical frame and same size, authenticated against prior evidence. Current5352824BC fork offset, wheelbase, standover and recommended rider height remain Unknown after bounded source access failure. Assembled weight10350g is measured at size56; other sizes are not individually weighed. Installed chain length, fork cut length and brake installation hardware remain unpublished.

Stack510 mm
Reach360 mm
StandoverUnavailable
Seat Tube390 mm
Effective Top Tube507 mm
Head Tube95 mm
Chainstay420 mm
WheelbaseUnavailable
Bottom Bracket Drop80 mm
Fork OffsetUnavailable
Head Angle70.3°
Seat Angle74.6°
