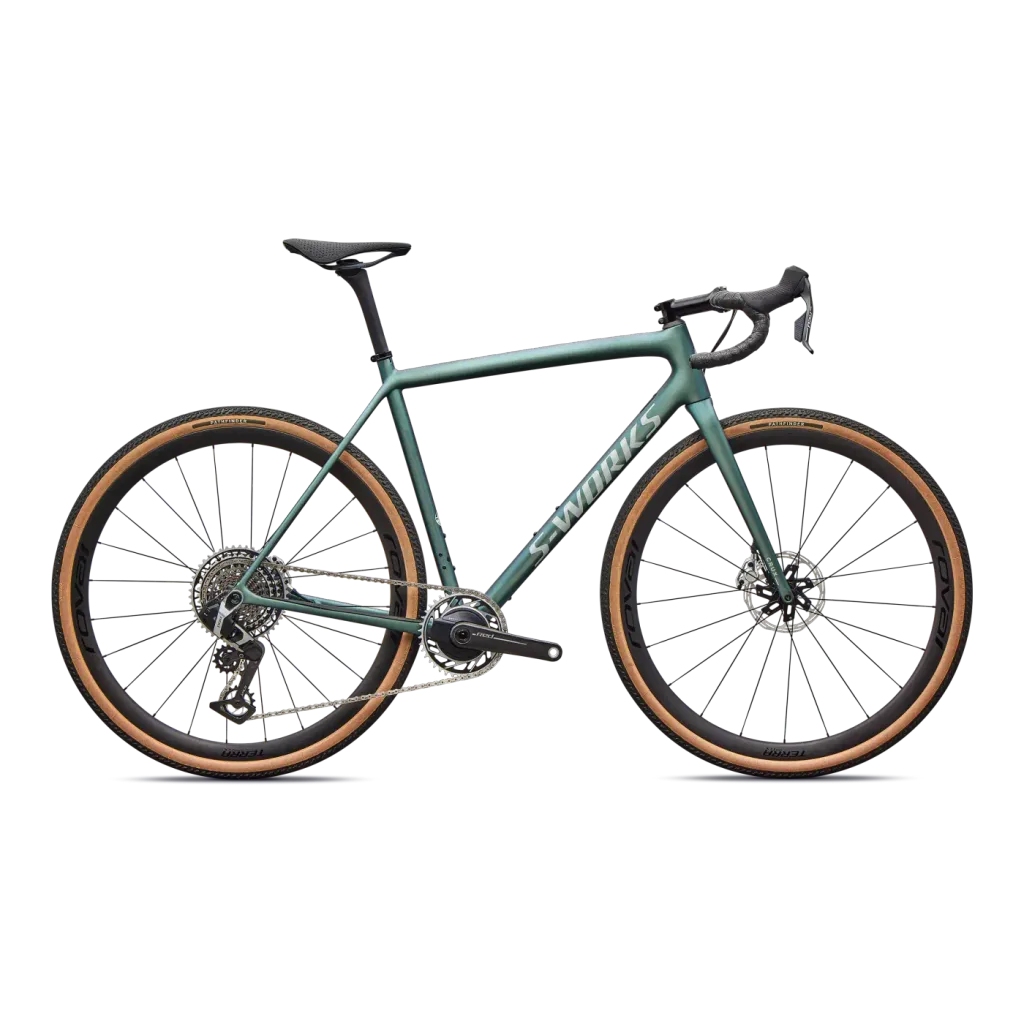

Specialized S-Works Crux — SRAM RED XPLR · BikePartPicker

REVIEWED STOCK BUILD

Stock Specifications

These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.

Chassis

Frameset: Specialized S-Works Crux FACT 12r UDH Stock Frame 49
Fork: Specialized S-Works Crux FACT Carbon Stock Fork 50 mm offset; factory reference

Wheels & Tires

Front Wheel: Roval Terra CLX II LF13 Stock Front Wheel 700c; LF13 ceramic SINC
Rear Wheel: Roval Terra CLX II LF14R2 XDR Stock Rear Wheel 700c; LF14R2 DT EXP; XDR
Front Tire: Specialized Pathfinder 700x40 Crux Stock Tire 700x40; tubeless ready; construction unspecified
Rear Tire: Specialized Pathfinder 700x40 Crux Stock Tire 700x40; tubeless ready; construction unspecified

Drivetrain

Crankset: SRAM RED XPLR AXS Power Meter 165 mm; 40T; DUB Wide
Bottom Bracket: SRAM DUB BSA 68 Wide Crux Stock Bottom Bracket BSA 68 Wide; bearing grade unspecified
Cassette: SRAM RED XPLR XG-1391 Cassette 13-speed; 10-46T; XDR
Rear Derailleur: SRAM RED XPLR AXS Rear Derailleur AM RD RED AXS XPLR E1 MAX 46T
Chain: SRAM RED XPLR Crux Stock Chain 13-speed; silver; retail length unspecified
Left Controls: SRAM RED AXS Left Shift-Brake Control Factory Included Control
Right Controls: SRAM RED AXS Right Shift-Brake Control Factory Included Control

Brakes

Front Brake: SRAM RED AXS E1 Caliper Silver; flat mount; either axle
Rear Brake: SRAM RED AXS E1 Caliper Silver; flat mount; either axle
Front Rotor: SRAM Crux 223487 Stock Disc Rotor 160 mm; Center Lock; model unspecified
Rear Rotor: SRAM Crux 223487 Stock Disc Rotor 160 mm; Center Lock; model unspecified

Cockpit

Handlebar: Roval Terra Carbon Handlebar 380 mm
Stem: Specialized S-Works SL Stem 70 mm; 6 degree
Seatpost: Roval Alpinist Carbon Post Black, 27.2mm x 300mm MPN 281213700
Saddle: Specialized S-Works Power with Mirror 155 mm

REVIEWED MEASUREMENTS

Technical Data

Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.

Fit & Weight

Recommended Rider Height: Unavailable
Advertised Assembled Weight: Unavailable

Geometry

Exact-size manufacturer geometry. Rider-height recommendations are unavailable. Manufacturer weight is measured on size 56 only.

Stack	530 mm
Reach	375 mm
Standover	749 mm
Seat Tube	466 mm
Effective Top Tube	512 mm
Head Tube	100 mm
Chainstay	425 mm
Wheelbase	1008 mm
Bottom Bracket Drop	74 mm
Fork Offset	50 mm
Head Angle	70.5°
Seat Angle	75.5°
