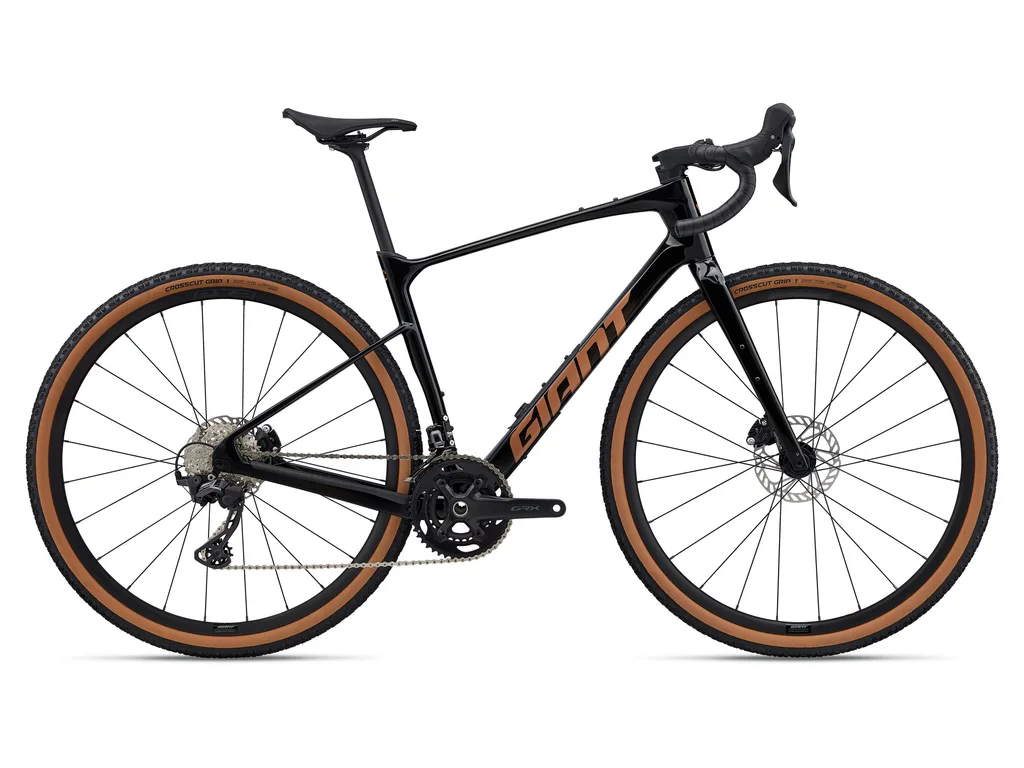

Giant Revolt Advanced 2 2026 · BikePartPicker

REVIEWED STOCK BUILD

Stock Specifications

These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.

Chassis

Frameset: Giant Revolt Advanced 2 2026 Stock Frame XS
Fork: Giant Revolt Advanced 2 2026 Stock Fork Factory stock reference

Wheels & Tires

Front Wheel: Giant P-X2 Disc Stock Front Wheel Factory stock reference
Rear Wheel: Giant P-X2 Disc Stock Rear Wheel Factory stock reference
Front Tire: Giant Crosscut Grip 700x45 Stock Tire 700x45c · factory tubeless
Rear Tire: Giant Crosscut Grip 700x45 Stock Tire 700x45c · factory tubeless

Drivetrain

Crankset: Shimano GRX FC-RX610-2 Crankset 46-30T · 170 mm
Bottom Bracket: Shimano Revolt Advanced 2 Stock Press-Fit Bottom Bracket Factory stock reference
Cassette: Shimano CS-HG710-12 Cassette 12-speed 11-36T
Front Derailleur: Shimano GRX FD-RX820 Front Derailleur Mechanical 2x12-speed braze-on
Rear Derailleur: Shimano GRX RD-RX820 Rear Derailleur Mechanical 2x12-speed · 11-34T / 11-36T
Chain: KMC X12L-1 Stock Chain Factory stock reference
Left Controls: Shimano GRX ST-RX610-L Left Shift / Brake Lever Left · hydraulic brake / front shift
Right Controls: Shimano GRX ST-RX610-R Right Shift / Brake Lever Right · 12-speed rear shift / hydraulic brake

Brakes

Front Brake: Shimano GRX BR-RX410 Brake Caliper Front · flat mount · 2-piston
Rear Brake: Shimano GRX BR-RX410 Brake Caliper Rear · flat mount · 2-piston
Front Rotor: Giant MPH 160 mm Stock Rotor 160 mm · factory stock reference
Rear Rotor: Giant MPH 160 mm Stock Rotor 160 mm · factory stock reference

Cockpit

Handlebar: Giant Contact XR D-Fuse Stock Handlebar 420 mm · factory stock reference
Stem: Giant Contact AeroLight Stock Stem 50 mm · -10° · factory stock reference
Seatpost: Giant D-Fuse Composite 14 mm Offset Stock Seatpost 14 mm offset · factory stock reference
Saddle: Giant Grit Stock Saddle Factory stock reference

REVIEWED MEASUREMENTS

Technical Data

Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.

Fit & Weight

Recommended Rider Height: 5′ 1″–5′ 5″ (155–166 cm)
Advertised Assembled Weight: Unavailable

Geometry

Geometry shown for the SHORT flip-chip setting. Moving to LONG changes some measurements.

Stack	556 mm
Reach	381 mm
Standover	724 mm
Seat Tube	430 mm
Effective Top Tube	540 mm
Head Tube	125 mm
Chainstay	425 mm
Wheelbase	1024 mm
Bottom Bracket Drop	80 mm
Fork Offset	50 mm
Head Angle	70°
Seat Angle	74°
