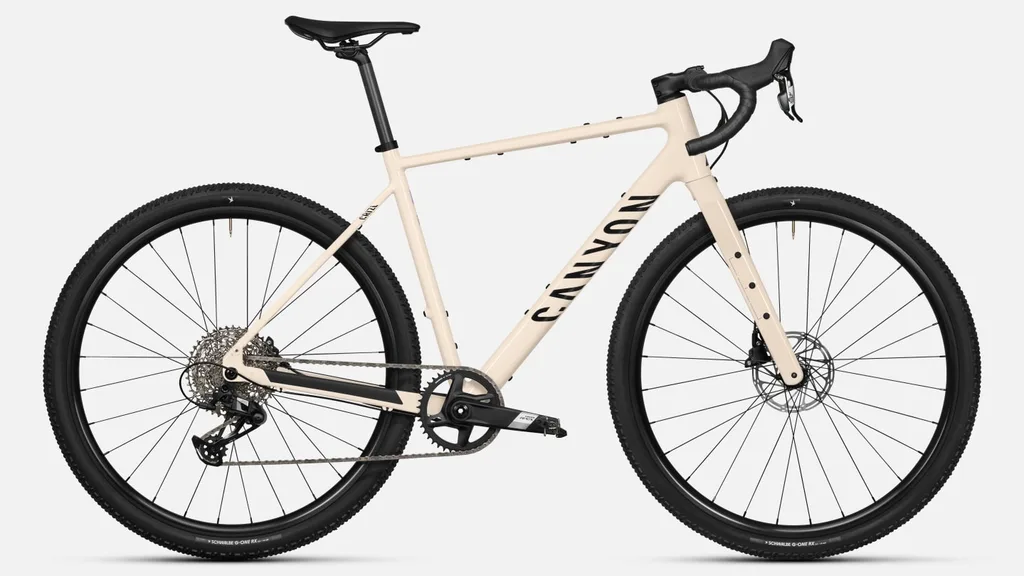

Canyon Grizl 6 · BikePartPicker

REVIEWED STOCK BUILD

Stock Specifications

These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.

Chassis

Frameset: Canyon Grizl 6 Canyon Grizl AL Stock frame 2XS
Fork: Canyon Grizl 6 Canyon FK0153 Disc Stock fork Factory stock reference

Wheels & Tires

Front Wheel: Alex Rims Grizl 6 Alex Rims GVX24P Stock frontWheel Factory stock reference
Rear Wheel: Alex Rims Grizl 6 Alex Rims GVX24P Stock rearWheel Factory stock reference
Front Tire: Schwalbe G-One RX ETRTO 45-622 · Black
Rear Tire: Schwalbe G-One RX ETRTO 45-622 · Black

Drivetrain

Crankset: SRAM SRAM Apex 1 Wide Crankset 40T · 170 mm
Bottom Bracket: Canyon Grizl 6 SRAM T47 Road Wide Stock bottomBracket Factory stock reference
Cassette: SRAM SRAM PG-1231 XPLR Cassette 12-speed · 11-44T
Front Derailleur: Stock specification unavailable
Rear Derailleur: SRAM SRAM Apex XPLR Rear Derailleur Mechanical 1x12 XPLR · Max 44T
Chain: SRAM SRAM Apex D1 Chain 12-speed Road Flattop · 120 links
Shifters: SRAM SRAM Apex Right Shift-Brake Control Factory Included Control
Brake Levers: SRAM SRAM Apex Left Brake Lever Factory Included Control

Brakes

Front Brake: SRAM SRAM Apex D1 Flat Mount Caliper Front or Rear · Caliper Only
Rear Brake: SRAM SRAM Apex D1 Flat Mount Caliper Front or Rear · Caliper Only
Front Rotor: SRAM SRAM CenterLine Rotor 160 mm · Center Lock
Rear Rotor: SRAM SRAM CenterLine Rotor 160 mm · Center Lock

Cockpit

Handlebar: Canyon Canyon HB0067 AL Gravel Dropbar 420 mm
Stem: Canyon Canyon ST0046 AL Road & Gravel Stem 50 mm
Seatpost: Canyon Grizl 6 Canyon SP0057 VCLS Stock seatpost Factory stock reference
Saddle: Selle Royal Grizl 6 Selle Royal SRX Stock saddle Factory stock reference

REVIEWED MEASUREMENTS

Technical Data

Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.

Fit & Weight

Recommended Rider Height: Unavailable
Advertised Assembled Weight: 23.2 lb (10.5 kg)Advertised 23.22 lbs based on size M standard spec; projected from M to this exact build and size

Geometry

Stack	550 mm
Reach	369 mm
Standover	764 mm
Seat Tube	432 mm
Effective Top Tube	532 mm
Head Tube	120 mm
Chainstay	440 mm
Wheelbase	1047 mm
Bottom Bracket Drop	75 mm
Fork Offset	Unavailable
Head Angle	68.8°
Seat Angle	73.5°

Sources

Canyon Grizl 6 geometrymanufacturer
Official product specificationmanufacturer
