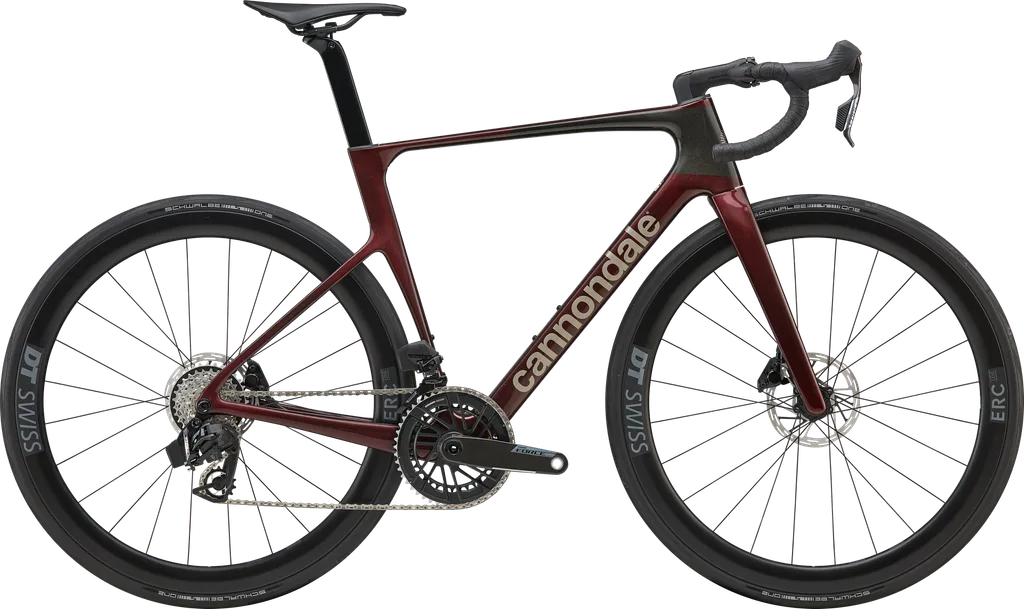

Cannondale SuperSix EVO 3 · BikePartPicker

REVIEWED STOCK BUILD

Stock Specifications

These assignments come from the selected reviewed bike configuration. Unavailable details remain explicit.

Chassis

Frameset: Cannondale SuperSix EVO 3 Gen 5 Stock Frame 44 cm / C1107GU
Fork: Cannondale SuperSix EVO Gen 5 Stock Fork 55 mm offset / Delta steerer

Wheels & Tires

Front Wheel: DT Swiss ERC LOG 45 Installed Front Wheel 370 / 12x100 / CenterLock
Rear Wheel: DT Swiss ERC LOG 45 Installed Rear Wheel 370 LN Ratchet / 12x142 / CenterLock
Front Tire: Schwalbe One TLR Installed Tire 700x28c / tubeless ready / construction unpublished
Rear Tire: Schwalbe One TLR Installed Tire 700x28c / tubeless ready / construction unpublished

Drivetrain

Crankset: SRAM Force E1 Installed Crankset 48/35T / 165 mm / power option unpublished
Bottom Bracket: SRAM DUB BSA 68 Installed Bottom Bracket BSA68 / DUB / bearing grade unpublished
Cassette: SRAM Force XG-1270 Installed Cassette 10-33T / 12-speed / revision unpublished
Chain: SRAM Force E1 Flattop Chain 12-speed · 114 links
Front Derailleur: SRAM Force AXS E1 Installed Front Derailleur 2x12-speed / Braze-On / 45 mm
Rear Derailleur: SRAM Force AXS Rear Derailleur AM RD FORCE AXS E1 MAX 36T
Left Controls: SRAM Force AXS Left Shift-Brake Control Factory Included Control
Right Controls: SRAM Force AXS Right Shift-Brake Control Factory Included Control

Brakes

Front Brake: SRAM Force AXS Installed Caliper Flat mount / hydraulic DOT / axle-independent physical unit
Rear Brake: SRAM Force AXS Installed Caliper Flat mount / hydraulic DOT / axle-independent physical unit
Front Rotor: SRAM Paceline Installed Rotor 160 mm / CenterLock / revision unpublished
Rear Rotor: SRAM Paceline Installed Rotor 160 mm / CenterLock / revision unpublished

Cockpit

Handlebar: Vision TRIMAX CARBON AERO 380 mm
Stem: Cannondale Synapse Installed C1 Conceal Alloy Stem 80mm / -6 degrees / Delta interface
Seatpost: Cannondale C1 Aero 40 v2 Seatpost 365mm 0mm Offset 0 mm offset
Saddle: Fizik VENTO ANTARES R5 140 mm

REVIEWED MEASUREMENTS

Technical Data

Published fit, weight, and geometry for the selected configuration. Missing measurements remain explicit.

Fit & Weight

Recommended Rider Height: Unavailable
Advertised Assembled Weight: Unavailable

Geometry

Stack	495 mm
Reach	373 mm
Standover	694 mm
Seat Tube	400 mm
Effective Top Tube	510 mm
Head Tube	89 mm
Chainstay	410 mm
Wheelbase	980 mm
Bottom Bracket Drop	74 mm
Fork Offset	55 mm
Head Angle	70.9°
Seat Angle	74.5°
